KUT-N SERIES
'elmex' KUT-N Series terminal blocks, tested and approved for 1000 V DC suitable for Use in photovoltaic systems. These terminal blocks have
conductor termination by well proven screw-clamp technology and are
manufactured using Polyamide 6.6 insulation housing.
The KUT-N Series currently consists of2.5, 4, 6, 10 mm? terminals (KUT 2.5N to KUT 1ON) all with identical profiles. This feature allows use of
common accessories such as End Plate, Barrier Plates, End Clamps etc.,
for the entire range. The5 mm (KUT2. 5N) and 6mm (KUT4N) pitch for the
terminals are becoming more popularintenationally.
The double deck- terminal KUDD4N is also available in this range where space is constraint.
All KUT-N series terminals have funnel shaped wire entry hole which
guides wire perfectly into the clamp even in difficult and congested
places of wiring. This also fully shrouds the conductor termination, thus
providing electrical coverfor safety.
The marking label windows are specially designed to accept labels of
different.makes and offerinstallation flexibility forend users.
EARTH TERMINALS
'elmex' Earth Terminal Blocks replace conventional Bus Bar used for
earthing. The structural designi is such that the mounting rail not only has
a mechanical but also an electrical function. Earthing is established
through the foot which clamps direcly onto the rail.
Earth Terminal Blocks are mounted on the same rail along with other
Terminal Blocks. The conducting part is Brass with Nickle- -Tin Plating,
providing a low resistance path. Moreover, the housing isa Green-Yellow
combination in accordance with universally accepted colour code for
earthing

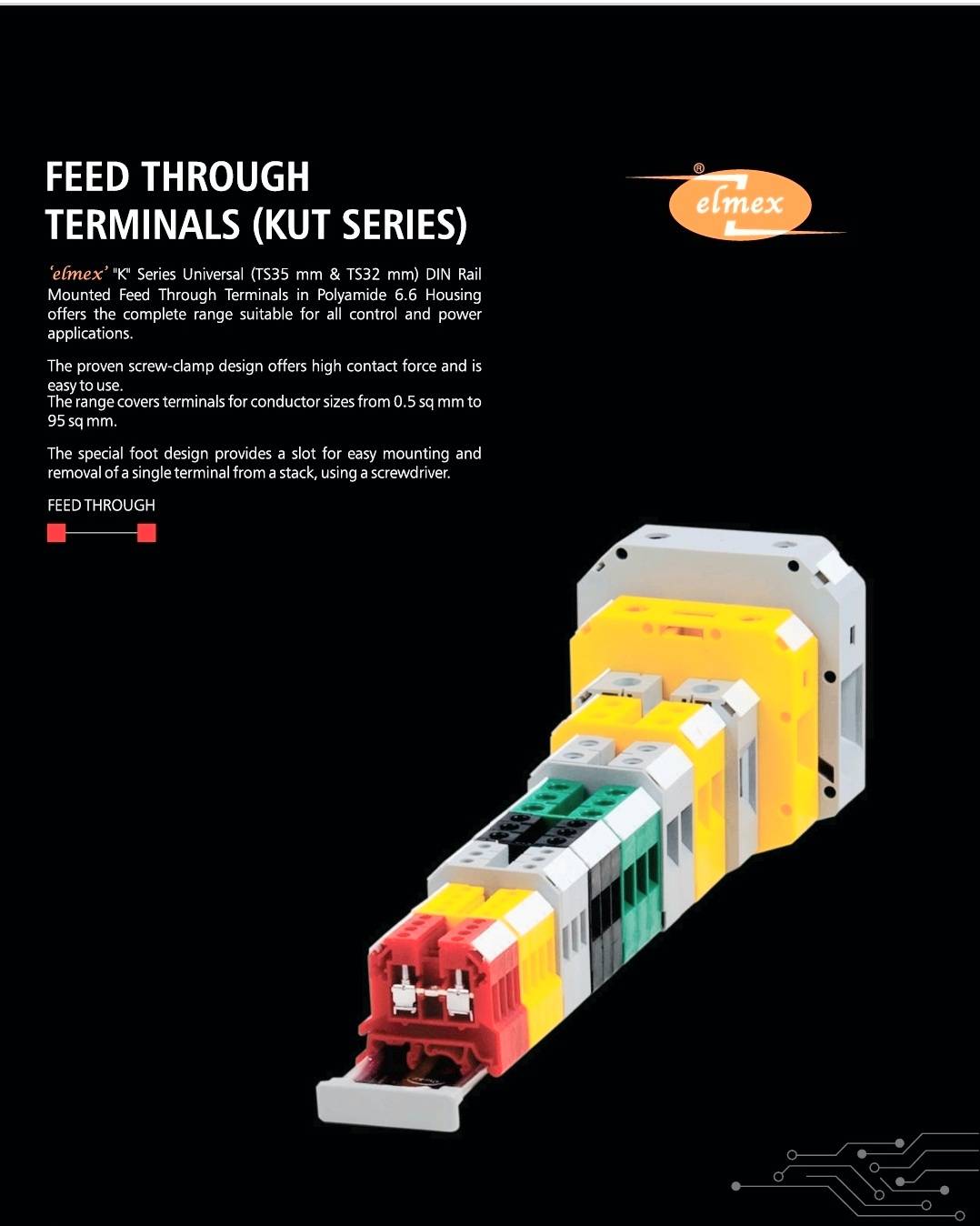

FEED
THROUGH
TERMINALS (KUT SERIES)
'elmex' "K" Series Universal (TS35 mm & TS32 mm) DIN Rail
Mounted Feed Through Terminals in Polyamide 6.6 Housing
offers the complete range suitable for all control and power
applications.
The proven screw-clamp design offers high contact force and is
easy to use.
The range covers terminals for conductor sizes from 0.5sq mm to
95sq mm.
The special foot design provides a slot for easy mounting and
removal ofasingle terminal: from astack, usinga screwdriver.
#FEED THROUGH terminal
#Fuse terminal
#Stud type terminal
