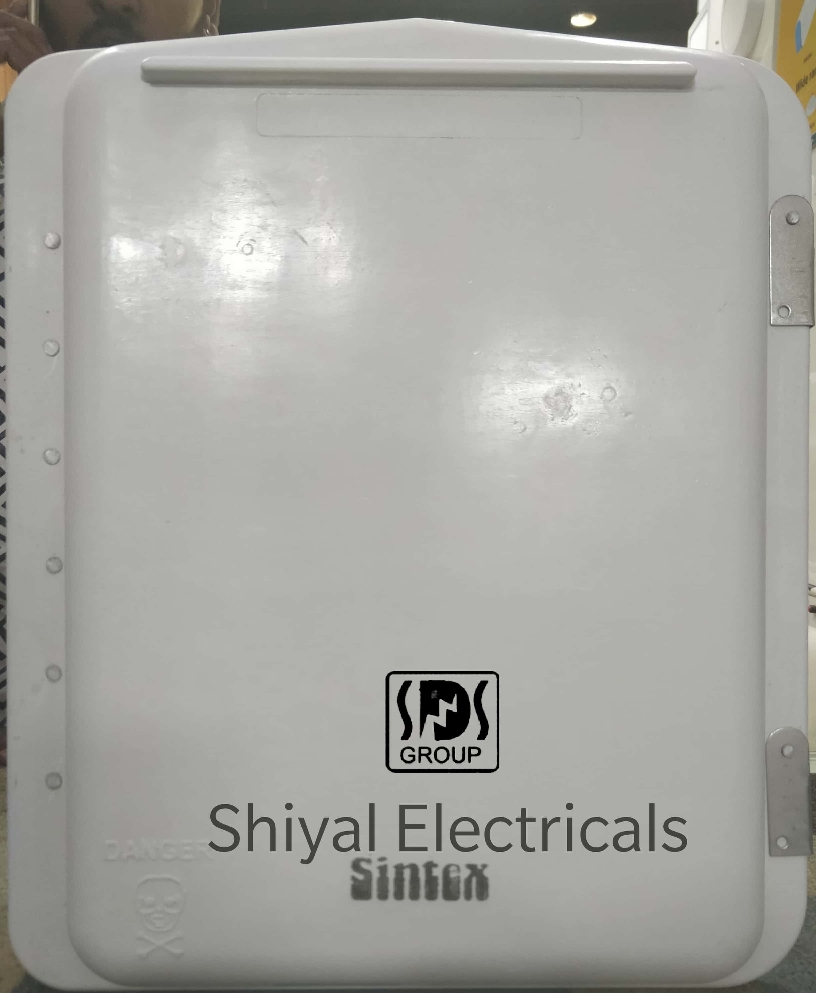

SINTEX SMC JUNCTION BOXES
It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised
FEATURES:
Shockproof and rustproof
Rot-proof and termite resistant
Cable entry from bottom and/or sides100% weatherproof
Pole mounting arrangement
Tamper proof
Pilferage proof
Restricts unauthorised tapping
Maintenance-free
Fire retardant – Class FV-0 as per IS:11731 Part-II or V-0 as per UL-94
High heat distortion temperature (200°C as per IS:10192)
Pole mounted junction box/cut-out box/fusebox for road/street lighting for 3 phase/4 corehigh wattage HPSV/HPMV/MH based lightingsystem for industrial applications.
Range & Specifications
Code No.Inside Dimensions
(mm) H x W x DApplicationsSide Hinged – Door fixed to base with hingesGS-JB-1414140 x 140 x 95Junction box/cut-out box/fuse box for single
phase/2 core low wattage FTL/CFL based lighting
system for pedestrian/pathway illumination.GS-JB-2014200 x 140 x 95GS-JB-2817240 x 130 x 110 Pole mounted junction box/cut-out box/fuse
box for road/street lighting for 3 phase/4 core
high wattage HPSV/HPMV/MH based lighting
system for industrial applications.GS-JB-2520250 x 200 x 105 GS-JB-3020[1]
(right hinged) 300 x 200 x 105 Top Hinged – Door fixed to base with hinges on topGS-JB-1616-T140 x 140 x 100 Junction box/cut-out box/fuse box for
single phase/2 core low wattage FTI/CFL
based lighting system for pedestrian/
pathway illumination.GS-JB-3016-T 275 x 135 x 110 Pole mounted junction box/cut-out box/fuse
box for road/street lighting for 3 phase/4 core
high wattage HPSV/HPMV/MH based lightingsystem for industrial, commercial as well as flood lightingapplications. Sliding – Door fixed to base by means of sliding GS-JB-3416 340 x 160 x 90 Pole mounted junction box/cut-out box/fuse
box for road/street lighting for 3 phase/4 core
high wattage HPSV/HPMV/MH based lightingsystem for industrial, commercial as well as flood lighting applications. Provision for fixing 2cut-outs, one for lighting and other for kiosks/signage/ emergency power supply. Removable–Door fixed to the base by means of hardware GS-JB-1510-R55 x100x60 Control terminal box/cut-out box GS-JB-1816-R 185 x 165 x 60 GS-JB-2818-R 280 x 180 x 60
