Nic ISI MARKED IS-9537-PART (II) 20MM TO 50MM O...

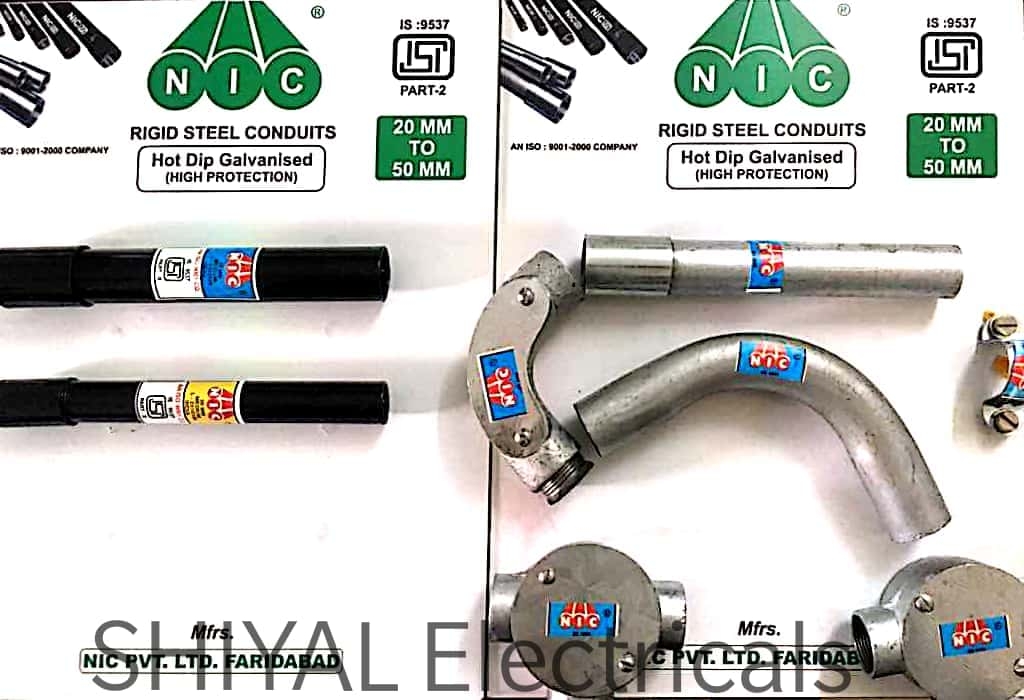

Nic ISI MARKED IS-9537-PART (II) 20MM TO 50MM OD RIGID STEEL CONDUITS & GI.CONDUITS PROVIDING THE PERFECT SAFETY FOR ELECTRIC INSTALLATION SUB: APPROVAL FOR NIC MAKE ISI MARKED (IS-9537-2) M.S. & GI. CONDUIT PIPE SIZE-20MM, 25MM, 32MM, 40MM. & 50MM O.D NIC BRAND ISI MARK SIZE 20MM TO 50MM. NIC-THE COMPANY NEW INDIA CONDUITS PVT LTD-POPULARLY KNOWN AS “KING OF CONDUITS” IS INDIA LARGEST MANUFACTURE OF ISI MARKED ERW STEELCONDUIT PIPES AND G.I CONDUIT PIPE NIC-THE PRODUCT PRECISION WELDED ERW CONDUIT PIPES ARE MADE FROM TESTED STEEL STRIPS ON AN TWO AUTOMATIC IMPORTED PLANT HIGH FREQUENCY INDUCTION WELD PROCESS THE LATEST TECHNOLOGY Technical Details for MS CONDUIT and GI CONDUIT NOMINAL SIZE IN MM 20 25 32 40 50 Outside Diameter (mm) 20 25 32 40 50 Tolerance on outside diameter (mm) -0.30 -0.40 -0.40 -0.40 -0.50 Minimum Outside diameter (mm) 19.70 24.60 31.60 39.60 49.50 Wall Thickness (a) Minimum (mm) 1.40 1.40 1.40 1.60 1.60 (b) Maximum (mm) 1.60 1.80 1.80 2.20 2.20 WHY NIC IS BETTER BESIDES THE MATERIAL, THE MOST MODERN, IMPORTED AND SOPHISTACATED MACHINES, ALONG WITH A HIGHLY QUALIFIED AND EXPERINCED TECHNICAL STAFF MAKES IT POSSIBLE FOR NIC TO ACHIVE ADMIRABLE RESULTS. THREADING GU COEACH NIC STEEL CONDUIT BLACK STOVE ENAMELLED AS WELL AS GI PIPE HAS THREADING ON BOTH THE ENDS AND IS SUPPLIED WITH A COUPLER AT ONE END. MARKING HOT STAMPING-ON EVERY LENTH OF STEEL CONDUIT PIPE OUR TRADE MARK NIC AND ISI IS HOT STAMPED EMBOSSED AT ONE METRE INTER. PROCESS (a.) Strips – Rolling – Welding (b.) Draw Bench - Lathe (c.) Stove Enameling Strips – Rolling – Welding NIC- CONDUITS, are manufactured on fully automated plant by high frequency induction welding system which ensures perfect welding and the minimum required inside Weld Beed to ease the wire pulling. Smooth wire pulling is further ensured when the pipes are chamfered at both the ends. The Weld area is as strong as the pipe’s steel itself, hence any kind of bending job can be carried out without any chance of opening of the seem or being prone to cracks. Even though the raw material used is tested quality, in house testing is carried out in accordance to IS specification to ensure that the production of the pipe suits the application. Draw Bench - Lathe NIC- CONDUITS PIPES ‘ threading is done on an automatic threading machine having Lanco Chasers which maintains uniformity on the length of treading on major diameter as well as on minor diameter and the pitch of the threads. This uniformity facilities easies fitting of all conduit accessories. The threads are checked with Screw Thread Gauge which ensures the quality threading of the pipes. Stove Enameling THE MEDIUM PROTECTION COATING, of the pipe with black stove enamel is done by dipping process which ensures proper coating inside and outside of the pipes. The pipes are baked in an automatic electric oven controlled with digital thermostat system to requisite hardness of the paint and gloss finish on the conduit. NIC TESTING LABORATORY NOT COMPROMISING ON QUALITY AT EVERY STAGE OF MANUFACTURING RIGHT FROM PURCHASE OF SELECTED RAW MATERIAL, THROUGH PRODUCT PROCESSING- TRANSPORTATION OF FINISHED NIC PIPES- QUALITY CONTROL IS ENFORCED MOST STRIGENTLY THEREBY ENSURING THE BEST TO OUR CUSTOMERS IN TERMS OF MORE LIFE BETTER SURFACE FINISH AND GOOD PACKING OF OUR PRODUCT. QUALITY CONTROL ENSURES TOP QUALITY OF RAW MATERIAL AND END PRODUCTS. • DIAMETER AND WALL THICKNESS MEASUREMENTS • COMPRESSION TESTING MACHINE • BEND TEST AND BALL TEST • SCREW THREAD TEST Shiyal Electricals MANAGEMENT STRATEGY 1 CREATIVE VALUE FOR CUSTOMERS SATISFACTION. 2 IMPROVE TECHNOLOGICAL COMPETITIVENESS THROUGH CONTINOU R& D EFFORT. 3 MAXIMISE & STREAMLINE ORGANIZATIONAL CAPABILITIES THROUGH TRANING AND HEALTHY WORK PLACE. 4TRUST AND TEAMWORK. 5 STRAGIC ALLIANCES TO BUILD-UPCORE COMPETENCIES. NIC STRIVES FOR A HEALTHIER INFRASTRUCTURE BY CONSTANTLY UPGRADING ITS ORGANIZATIONAL STRUCTURE AND PRACTICING OPEN ABD MODERN MANAGEMENT POLICIES. APPROVAL FOR NIC MAKE ISI MARK WE ARE CONFIDENT YOU WOULD BE ENTIRLY SATISFIED BY THE QUALITY OF OUR PRODUCTS& REQUEST YOU TO KINDLY APPROVE & USE (NIC) MAKE RIGID STEEL CONDUITS & GI.CONDUITS FOR ALL YOUR ONGOING & UPCOMING PROJECTS. LOOKING FORWARD TO YOUR KIND PATRONAGE. MALLS, MULTIPLEX, HOSPITALS, HOTELS, IT PARK, PVR, COMMERCIAL PROJECTS, RESIDENTAL PROJECTS, METRO, POWER PLANTS, TOWNSHIPS HOSPITALITY, GROUP-HOUSING, LIST OF PROJECTS WHERE OUR PIPES HAVE BEEN USED Project List 1. Indian Oil Corporation Ltd. 2. Times House 3. LIC of India 4. NTPC 5. Siemens Limited 6. State Bank of India 7. Larsen & Toubro Ltd. 8. ABB 9. Airport Authority of India 10. DLF 11. SCHNEIDER ELECTRIC 12. LAKHANI Footware 13. WIPRO 14. CPWD 15. PWD 16. Indian Railway 17. MES
